APC 5000VA(5kva) 230V Rackmount Smart-UPS

APC 5000VA (5kVA) 230V Rackmount Smart-UPS

Long Description

The APC Smart-UPS  is a high-performance, 5000VA / 5000W (5kVA / 5kW) Online Double-Conversion Uninterruptible Power Supply (UPS) designed for mission-critical applications in data centres, server rooms, and advanced IT environments. This online double-conversion UPS provides constant, clean, and pure sine wave power by continuously converting incoming AC power to DC and then back to AC.

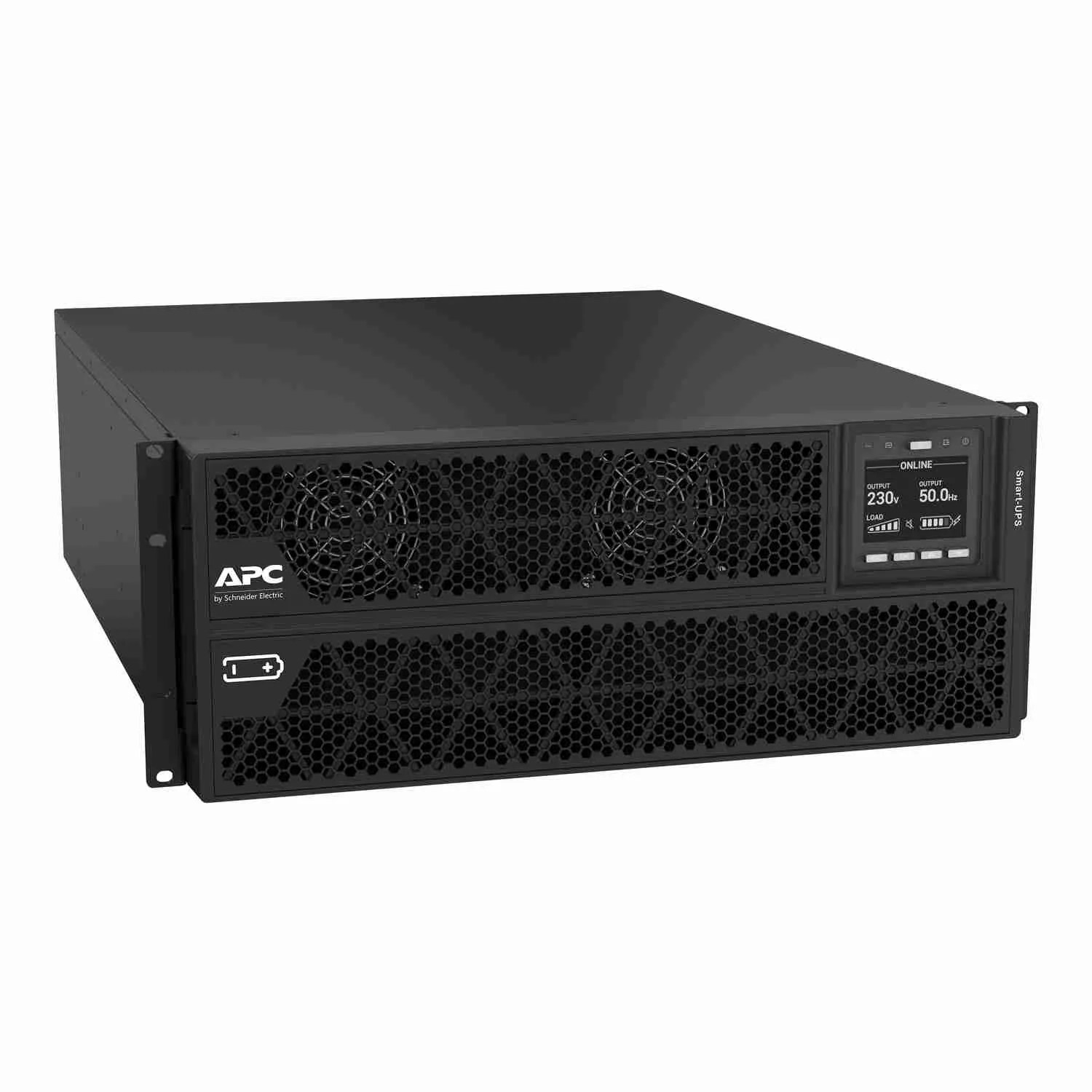

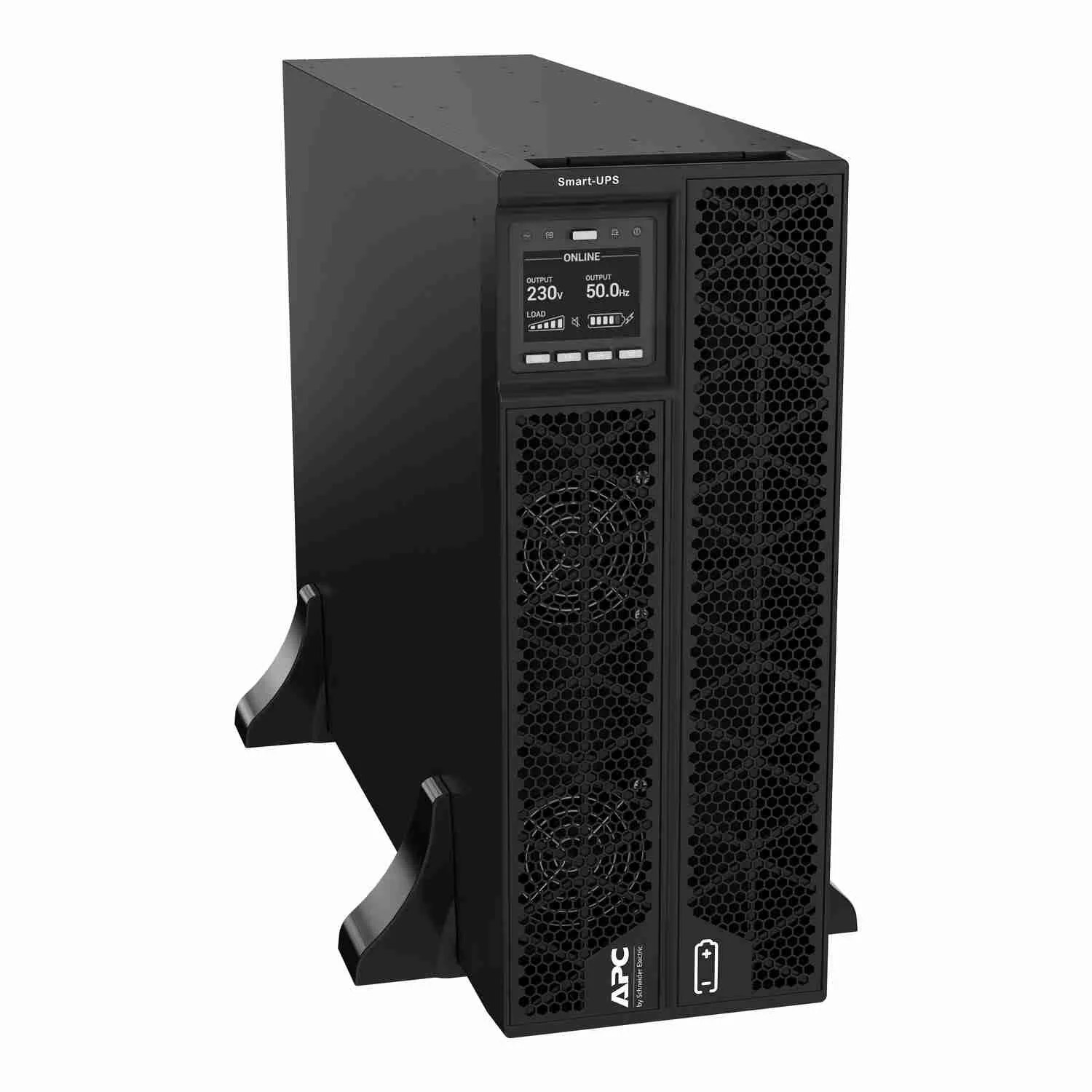

The UPS boasts a versatile rack/tower convertible design (4U rack unit), allowing for flexible deployment in standard 19-inch server racks or as a standalone tower unit. Its robust construction and high power capacity are built to support demanding loads such as multiple servers, network switches, storage arrays, and other critical IT infrastructure.

Connectivity and management are central to this Smart-UPS. It comes with an embedded Network Management Card (NMC3) with environmental monitoring capabilities, allowing for comprehensive remote monitoring and management of the UPS via a network. This enables real-time alerts, graceful shutdowns of connected servers using PowerChute Network Shutdown software, and integration with centralized management platforms. Additional interface ports include RJ-45 Serial and USB, providing versatile communication options.

The unit features a user-friendly LCD graphical display that provides real-time status updates on operating modes, system parameters (like load and battery levels), and alarms, offering intuitive local management. It includes various output connection types to suit diverse equipment: two IEC 60320 C13 outlets, one IEC 60320 C19 outlet, and a hardwire 3-wire (H+N+E) terminal for direct wiring of high-power loads.

Additional features include automatic restart of connected equipment once utility power is restored, an Emergency Power Off (EPO) port for remote shutdown in critical situations, and robust surge protection (600 Joules). The design minimizes harmonic distortion (less than 2%) ensuring clean power output, and operates with an acoustic level of 55 dBA.

Short Description

• Model: APC Smart-UPS 5000VA (5kVA) 230V Rackmount Smart-UPS
• Product Type: Online Double-Conversion Uninterruptible Power Supply (UPS)
• Power Capacity: 5000VA / 5000 Watts (5kVA / 5kW)
• Nominal Output Voltage: 230V (configurable for 220V, 240V)
• Nominal Input Voltage: 230V (Input voltage range: 160-285V full load, 100-285V half load)
• Output Connections: 2 x IEC 60320 C13, 1 x IEC 60320 C19, 1 x Hard wire 3-wire (H+N+E)
• Topology: Double Conversion Online
• Waveform Type: Sine Wave
• Automatic Voltage Regulation (AVR): Inherently handled by double-conversion
• Transfer Time: 0 ms (Zero transfer time)
• Battery Type: Lead-acid battery
• Included Battery Modules: 2
• Expected Battery Life: 3 – 5 years
• Replacement Battery: APCRBC170
• Typical Recharge Time: 4 hours
• Surge Energy Rating: 600 Joules
• Management Interfaces: Embedded Network Management Card 3 (NMC3) with environmental monitoring, RJ-45 Serial, USB, Smart-Slot
• Control Panel: Multifunction LCD graphical display
• Alarms: Audible and visible alarms (on battery, low battery, overload, fault)
• Features: Rack/Tower convertible (4U), Hot-swappable batteries, Scalable runtime (with external battery packs SRTG192XLBP4), ECO Mode, Automatic restart, Emergency Power Off (EPO), PowerChute Network Shutdown compatibility.
• Dimensions (HxWxD): 17.5 cm x 44 cm x 62 cm (6.89 x 17.32 x 24.4 inches)
• Net Weight: 55.9 kg (123.2 lbs)
• Color: Black (RAL 9005)
• Warranty: Typically 3 years repair or replace (excluding battery), 2 years for battery
• What’s in the Box (Typical):
  • 1 x APC Smart-UPS unit
  • 1 x USB Cable
  • 1 x RJ45 Cable
  • 1 x Rack mounting brackets
  • 1 x Stabilization/Wall mounting feet
  • 1 x Installation Manual
  • 1 x C13-C14 Power Cord
  • (Internal Network Management Card is pre-installed)

Product Tags

APC, Smart-UPS, 5000VA, 5kVA, Rackmount UPS, Online UPS, Double Conversion, Data Centre UPS, Server UPS, Network Management Card, Pure Sine Wave, Hot-Swappable Battery, Extended Runtime, IT Infrastructure, Power Protection.
