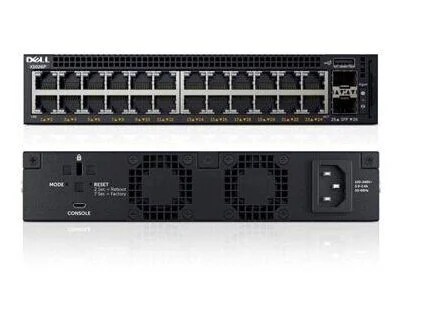

Dell Networking Switch X1026P/PoE (12-Port POE/12-Port POE+) 24x 1GbE + 2x 1GbE SFP ports/ DNX1026P (09F09P)

Dell Networking Switch X1026P/PoE (DNX1026P / 09F09P)

Long Description

Elevate your network infrastructure with the Dell Networking Switch X1026P/PoE, a robust and intelligently managed solution designed for growing businesses, remote offices, and modern campus environments in Nairobi, Kenya. This versatile Layer 2 smart-managed switch (model DNX1026P / 09F09P) combines powerful performance with simplified management, ensuring seamless connectivity and efficient power delivery to your network devices.

The X1026P features 24 Gigabit Ethernet (1GbE) RJ-45 ports, all of which support Power over Ethernet (PoE) and PoE+ (IEEE 802.3af/at) standards, offering a substantial total power budget of up to 360W. This allows you to effortlessly power IP phones, wireless access points, IP cameras, and other PoE-enabled devices directly through the network cable, significantly simplifying deployments and reducing cabling costs. For high-speed backbone connections or linking to other network segments, it includes 2 dedicated 1GbE SFP ports, providing flexible uplink options via fiber or copper transceivers.

Managing your network is intuitive and efficient with the X1026P’s GUI-based Smart Management. Its user-friendly interface simplifies setup, configuration, and monitoring, making advanced features accessible even for those without extensive networking expertise. The switch supports critical Layer 2 capabilities such as VLANs (up to 4094) for network segmentation, Quality of Service (QoS) with 4 priority queues per port for traffic optimization, Link Aggregation (LACP) for increased bandwidth and redundancy, and various Spanning Tree Protocols (STP, RSTP, MSTP) to prevent network loops. With a 52 Gbps switching fabric capacity and a 38.7 Mpps forwarding rate, the X1026P ensures wire-speed performance across all ports, guaranteeing smooth data flow for demanding applications. Its compact 1U rack-mountable form factor makes it easy to integrate into existing server racks, while its comprehensive features make it an ideal choice for businesses seeking a reliable, scalable, and power-efficient networking solution.

Short Description

• Model: Dell Networking Switch X1026P/PoE (DNX1026P / 09F09P)
• Product Type: Smart Managed Layer 2 Ethernet Switch
• Brand: Dell Networking (Dell EMC)
• Port Configuration:
• • 24 x 1GbE (10/100/1000Base-T) RJ-45 Ports
  • 2 x 1GbE SFP Uplink Ports
• PoE Capabilities: All 24 RJ-45 ports support PoE (802.3af) & PoE+ (802.3at)
• Total PoE Power Budget: Up to 360W
• Management Type: GUI-based Smart Managed (Web-Managed)
• Performance:
  • Switching Fabric Capacity: 52 Gbps
  • Forwarding Rate: 38.7 Mpps
  • MAC Address Table Size: 16K entries
• Key Features: VLANs (4094), QoS (4 queues/port), Link Aggregation (LACP), STP/RSTP/MSTP, Port Mirroring, IPv4/IPv6 Support
• Form Factor: 1U Rack-mountable (Half-Width)
• Dimensions (H x W x D): 41.25 x 209.0 x 250.0 mm (1.62 x 8.23 x 9.84 inches)
• Weight: Approx. 1.88 Kg (4.14 lbs)
• Power Supply: Internal (450W power provided)
• Target Audience: Small to Medium Businesses (SMBs), Remote Offices, Education, Retail, Hospitality.

What?s in the Box

• 1 x Dell Networking Switch X1026P/PoE (DNX1026P / 09F09P)
• 1 x Power Cord
• 1 x Rack-Mounting Kit
• 1 x Documentation / Quick Start Guide
