Epson EB-X49 3600 Lumen XGA Projector (V11H982040)

Epson EB-X49 3600 Lumen XGA Projector (V11H982040)

Long Description

The Epson EB-X49 (V11H982040) is a versatile and high-performance XGA (1024 x 768) 3LCD projector designed for a wide range of applications, from business presentations and educational settings to various multimedia uses. It combines excellent brightness and sharpness with low-maintenance operation, offering a reliable projection solution.

At its core, the EB-X49 utilizes Epson’s renowned 3LCD technology. This ensures equally high White and Colour Light Output of 3,600 lumens, delivering vibrant, true-to-life colors and crisp text. This means images are bright and clear even in well-lit rooms, enhancing visibility and engagement. The projector boasts a high contrast ratio of 16,000:1, which provides deep blacks and clear details, adding impact to presentations and video content. The image can be scaled to an impressive size of up to 300 inches.

One of the key advantages of this projector is its long lamp life. The UHE (Ultra High Efficiency) lamp offers a durability of up to 6,000 hours in normal mode and an extended 12,000 hours in Eco mode, significantly reducing the total cost of ownership and minimizing maintenance requirements.

The EB-X49 offers considerable installation and placement flexibility. It features automatic vertical and manual horizontal keystone correction (±30° for both), which allows for distortion-free images even when the projector is placed off-center. A 1.2x optical zoom further enhances positioning flexibility.

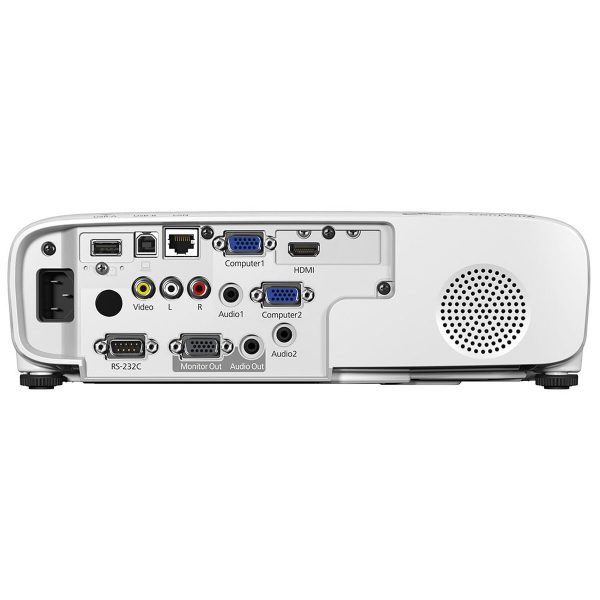

For connectivity, the projector provides a wide array of interfaces, ensuring compatibility with various devices. These include:

• HDMI input for high-definition video and audio.
• Multiple VGA inputs (2x) and a VGA output.
• USB 2.0 (Type A and Type B) ports, with USB Display Function (2-in-1: Image/Sound).
• RS-232C for control.
• Ethernet interface (100 Base-TX / 10 Base-T) for network projection (PJLink protocol supported) and remote management.
• Composite in.
• Multiple audio inputs (2x Jack plug in, Cinch audio in) and a Jack plug out for audio output.
• Optional wireless LAN (IEEE 802.11a/b/g/n/ac) via a separate unit for wireless connectivity and use with the Epson iProjection App (Ad-Hoc / Infrastructure modes supported).

The projector includes a built-in 5W mono speaker to provide clear audio without the need for external speakers for typical presentations. Advanced features like AV Mute Slide, Digital zoom, Direct Power On/Off, Document Camera compatibility, PC Free projection, Quick Corner, and Split-Screen Function enhance usability. Security features include a Kensington lock and security cable hole. The projector supports various video color modes including Dynamic, Cinema, Presentation, sRGB, and Blackboard.

Short Description

• Model: Epson EB-X49
• Part Number: V11H982040
• Product Type: 3LCD Projector
• Projection System: 3LCD Technology, RGB liquid crystal shutter
• LCD Panel: 0.55 inch with C2 Fine
• Native Resolution: XGA (1024 x 768)
• Aspect Ratio: 4:3
• Color Light Output: 3,600 Lumens (2,400 Lumens in economy mode)
• White Light Output: 3,600 Lumens
• Contrast Ratio: 16,000:1
• Light Source: Lamp (UHE, 210 W)
• Lamp Life: 6,000 hours (Normal mode), 12,000 hours (Eco mode)
• Screen Size: 30 inches – 300 inches
• Throw Ratio: 1.48 – 1.77:1
• Zoom: Manual, Factor: 1.2 optical zoom
• Keystone Correction: Auto Vertical: ±30°, Manual Horizontal: ±30°
• Color Reproduction: Up to 1.07 billion colors
• Connectivity (Interfaces):
• • HDMI in
  • VGA in (2x), VGA out
  • USB 2.0 Type B (for USB Display Function: Image/Sound), USB 2.0 Type A
  • RS-232C
  • Ethernet interface (RJ45, 100 Base-TX / 10 Base-T)
  • Composite in
  • Jack plug in (2x), Jack plug out, Cinch audio in
  • Wireless LAN IEEE 802.11a/b/g/n/ac (optional, via separate unit)
• Built-in Speaker: 5 Watt mono
• Noise Level: 37 dB (Normal), 28 dB (Economy)
• Power Consumption: 286 W (Normal), 180 W (Eco), 0.3 W (Standby)
• Supply Voltage: AC 100 V – 240 V, 50 Hz – 60 Hz
• Product Dimensions (W x D x H): 302 x 249 x 87 mm
• Product Weight: 2.7 kg
• Security: Kensington lock, Security cable hole, Wireless LAN unit lock
• Included Software: EasyMP Multi PC Projection, Epson Projector Management
• Warranty: Typically 36 months Carry in, Lamp: 36 months or 1,000 hours (whichever comes first)

What’s in the Box (Typical):

• 1 x Epson EB-X49 Projector
• 1 x HDMI Cable
• 1 x Main unit
• 1 x Power cable
• 1 x Quick Start Guide
• 1 x Remote control incl. batteries
• 1 x User Manual (CD-ROM)
• 1 x Warranty document
